4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength

  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
起源の場所 広東省、中国
最小注文数量 1

試供品およびクーポンのための私に連絡しなさい。

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

心配があれば、私達は24時間のオンライン・ヘルプを提供する。

x
商品の詳細
出力電力 2000w 寸法 620×490×878mm
重さ 100.5kg レーザー波長 1080±5nm
動作モード 連続/変調 力の調節 10~100%
ファイバーコアの直径 50(25,100200 選択可能) 標的光 赤信号
繊維の長さ 10m 溶接速度 0~120mm/s
材料の厚さ <3.5mm(材質による) 使用温度 10〜40°C
使用湿度 10-85%、結露なきこと ワイヤーフィード速度 38～600mm/分
ワイヤ送り径 0.8/1.0/1.2/1.6mm 冷却方法 空冷
動作電圧 220V、50/60Hz
ハイライト

4-in-1 Functional Handheld Laser Welding Machine

,

2 Years Warranty Portable Laser Welder

,

1080±5nm Wavelength Fiber Laser Welding Machine
メッセージ
製品の説明

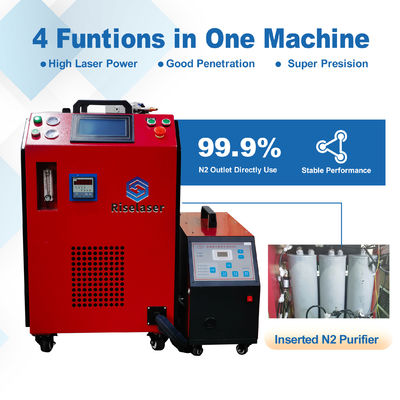

Integrated Nitrogen Generator 4-in-1 Functional Air Cooled Laser Welding Machine
4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 0 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 1 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 2 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 3 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 4 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 5 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 6 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 7 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 8 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 9 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 10 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 11
Technical Specifications
Feature Specification
Output power 800W/1200W/1500W/2000W
Laser wavelength 1080±5nm
Operating mode Continuous/Modulation
Power adjustment range 10~100%
Fiber core diameter 50(25,100,200 optional)
Aiming and positioning Red light
Fiber length 10m
Welding speed 0~120mm/s
Applicate thickness <3.5mm(depending on the material)
Working environment 10-40℃,humidity 10-85%,no condensation
Wire feeder Standard wire feeding speed 38~600mm/min
Wire feed diameter 0.8/1.0/1.2/1.6mm

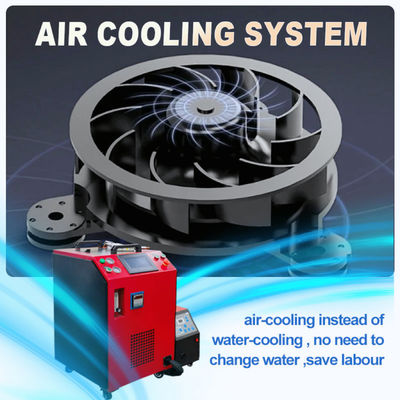

Cooling way Air cooling
Operating voltage 220V,50/60Hz
4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 12 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 13 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 14 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 15 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 16 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 17 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 18
Frequently Asked Questions
1. How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2. How long is the cable?
Different laser sources have different options. For example, the normal cable length of Raycus and Max is about 9 meters.
3. How thick can 1500W-3000W be welded?
1-8mm thick metal materials.

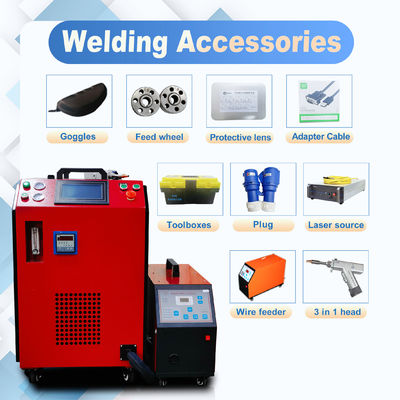

4. Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, please contact us and provide your email address. We will send more detailed pictures to your email.
5. Can aluminum and galvanized steel be welded?
Yes, it can.
6. Packaging
All our machines are packed in wooden boxes.
7. Language interface
Supports language customization. You can also translate and insert to software.
